NRF51822 Eval Kit
NRF51822 Eval KitNRF51822 Eval KitNRF51822 Eval KitNRF51822 Eval Kit
$25.00

  • Onboard battery holder, multi power supplies

  • All the IOs are accessible for easy expansion


  • LEDs and user keys, compatible with other official boards

  • PRODUCT OVERVIEW
  • SPECIFICATIONS
  • FEATURES

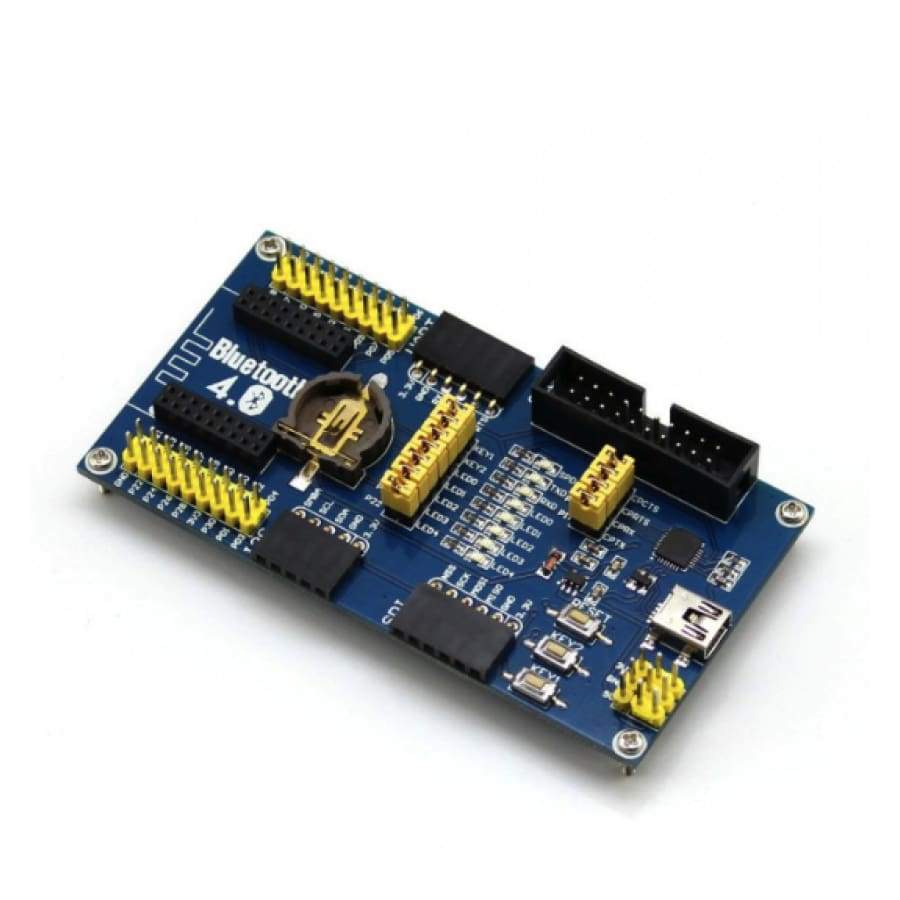

NRF51822 Eval Kit is a development/evaluation kit designed for nRF51822, consists of the mother board BLE400 and the wireless module Core51822.

  • Wireless module connector: for easily connecting modules like Core51822
  • MCU pins expansion connector
  • I2C interface
  • SPI interface
  • 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  • USB connector: USB TO UART via onboard convertor CP2102
  • Debugging interface
  • UART interface
  • Battery holder
  • User LEDs
  • User keys
  • Reset button
  • CP2102
  • USB TO UART jumper
  • LEDs & Keys jumper

  • 2.4 GHz multiprotocol RF transceiver
  • ARM® Cortex™-M0 32 bit processor
  • 128 bit AES HW encryption
  • 256kB flash & 32kB RAM
  • Programmable Peripheral Interconnect (PPI)
  • Digital interfaces: SPI, I2C, UART
  • 10 bit ADC
  • Programmable output power: -20 to +4 dBm
  • Independent application development and protocol stack
  • Fully compatible with NRF24L series
  • Pinout compatible with NRF51xxx series
  • Global separate power management
  • Operating voltage: 1.8 V ~ 3.6 V
