TinyPICO is the world’s smallest, fully-featured ESP32 development board, designed to give you access to the power of the ESP32’s dual core 240 MHz processor and internet connectivity, all in a package smaller than your thumb!
Your very own TinyPICO with MicroPython pre-installed. Comes with unassembled male headers, stackable headers, a JST PH battery connector, and a JST MicroBlade battery connector.
- Processing:32-bit dual-core processor operating at 240 MHz4 MB SPI flash4 MB extra PSRAM
- Wireless:2.4 GHz Wi-Fi - 802.11b/g/nBluetooth BLE 4.23D antenna
- Power:700 mA 3.3 V LDO regulatorOptimised power path for low-power battery usageLiPo battery managementBattery pads on the bottom support both JST PH & MicroBlade connectors (included unassembled with every TinyPICO)Power (red) & charge (orange) LEDs

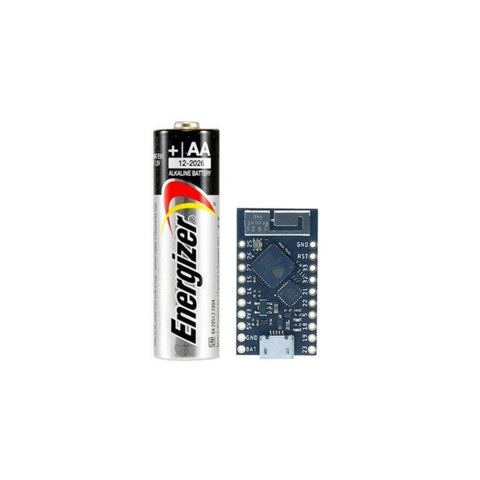

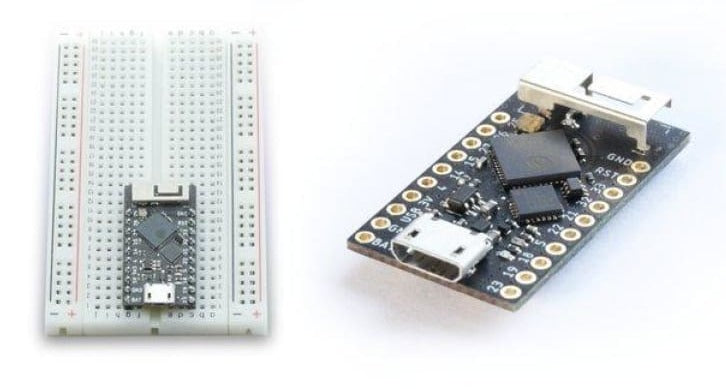

- Form-factor:Breadboard-friendlyOh, it’s tiny! Just 18 mm x 32 mm

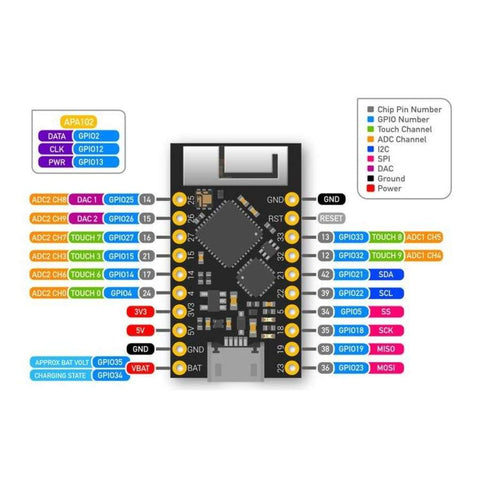

- Connectivity:14x GPIO broken out to standard pitch headersUSB + serial/UART for programmingAPA102 RGB LED
- Control:MicroPython pre-installedSupports Arduino IDESupports Espressif IDFLots of example code and libraries

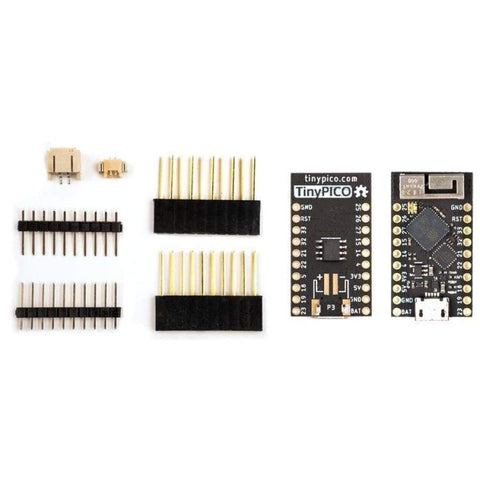

Each TinyPICO comes in an anti-static bag that includes:
-1x TinyPICO
-1x Set of male headers
-1x Set of female stackable headers
-1x JST PH connector
-1x JST MicroBlade connector
-1x Printed pinout reference card
